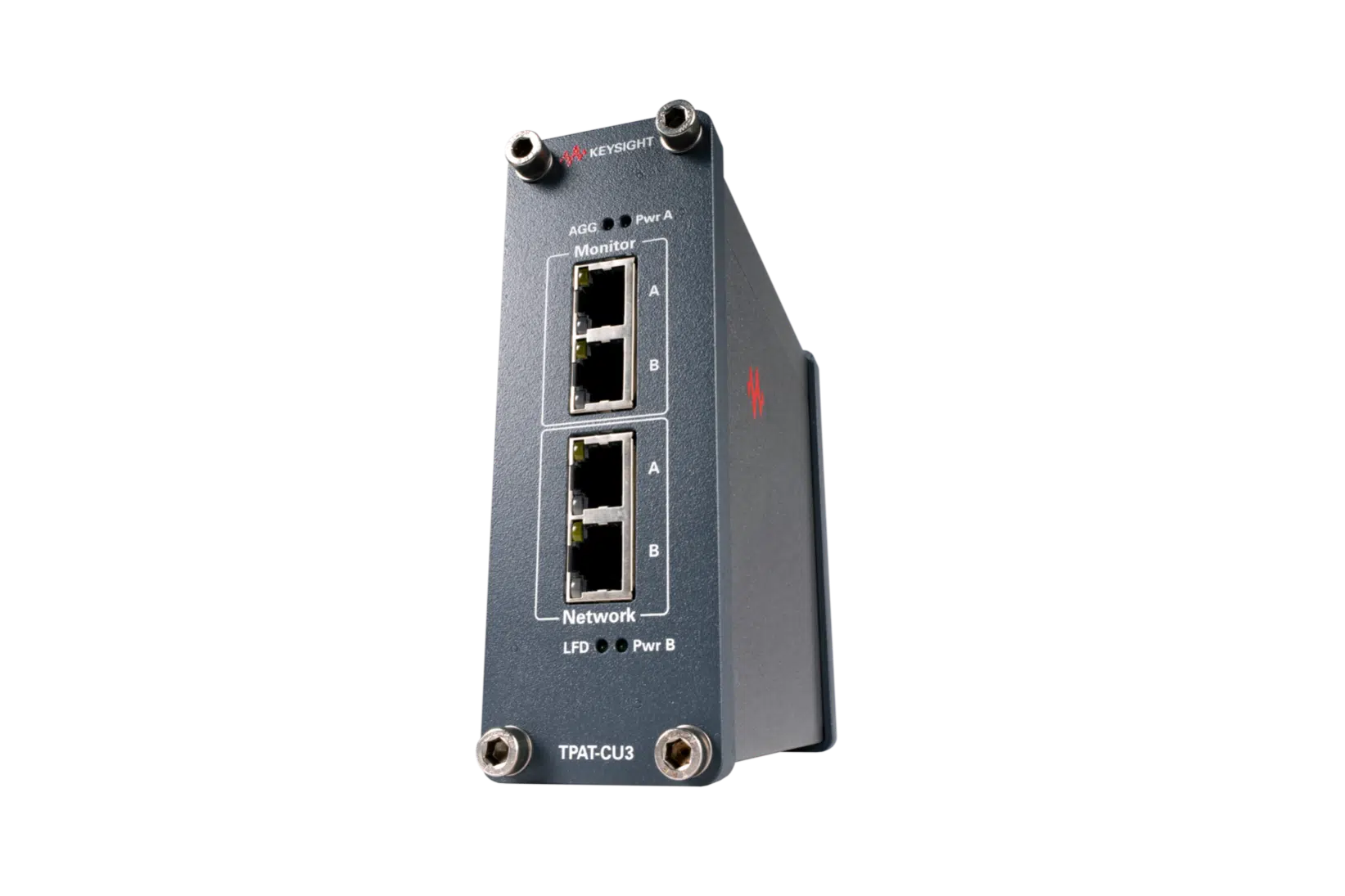

TPAT2-CU3-T, The Copper Tough Tap, TPAT2-CU3-T 10/100/1000Mbps is a secure Tap device which can operate as a simple tap
£5,247.00 exc. tax
Ixia Part Number: TPAT2-CU3-T

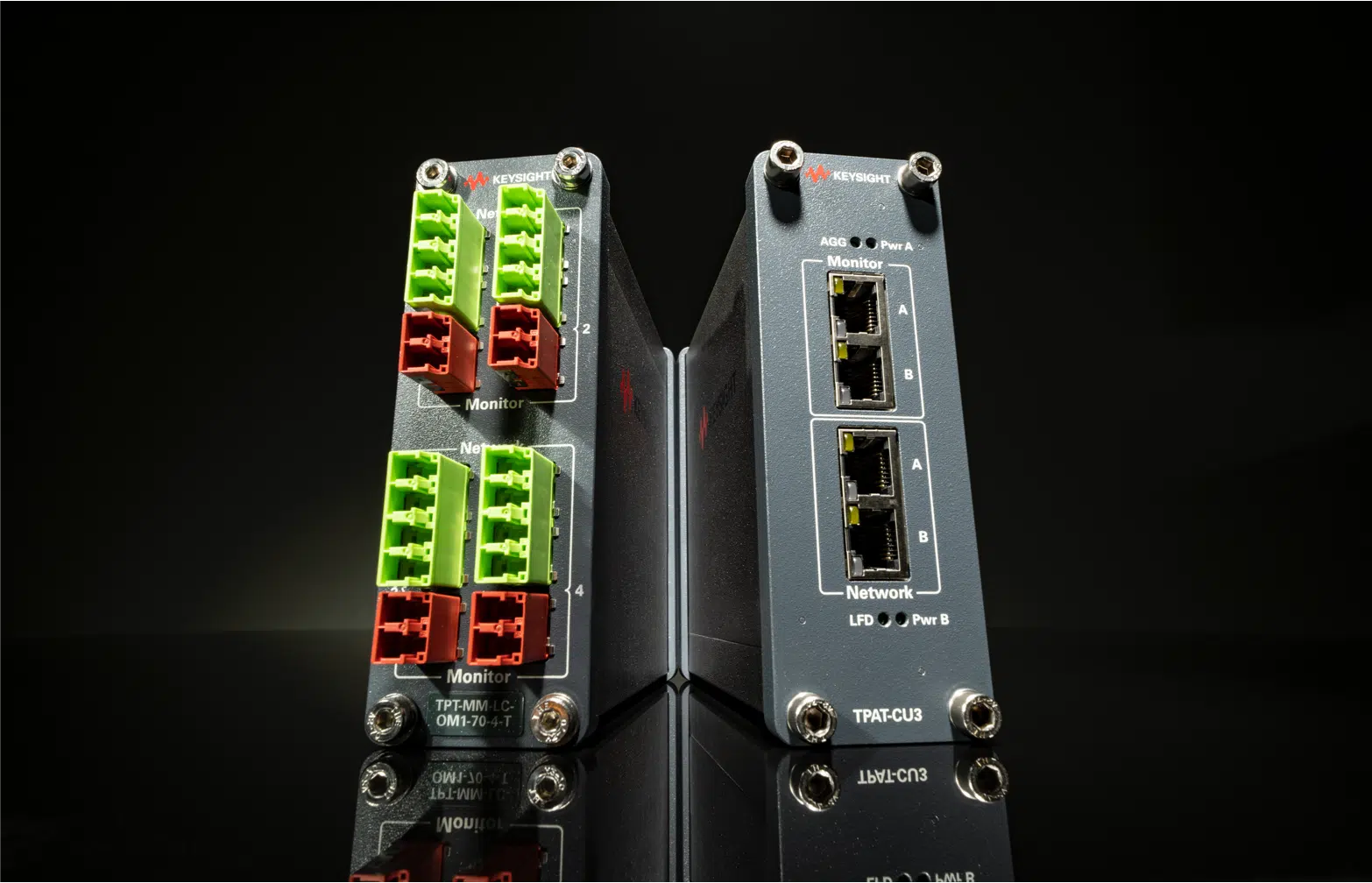

Keysight’s Industrial Copper Tough Taps are designed, built and tested for a first layer of packet visibility infrastructure compatible with harsh environment. Designed to withstand the industrial grade environments, Keysight taps provide out of band monitoring for security and performance tools, duplicating all packets for full visibility.
Ixia, TAA compliant, Copper Tough Tap – Industrial 10/100/1000mbps Copper tap port aggregator with switchable aggregation mode with LFD and auto speed negotiation, 5VDC/12VDC. Power not included. Optional: RKTT-19IN-DIN-RAIL- T and optional DIN mount power supplies for AC or DC power. Compatible rack mount: RK-TPAT-8TAP-T (955-0167)
Download the Datasheet HERE
Or Visit Our Website HERE to understand more around Network TAPS.
Request a quotation for Multiple to receive discount
The Ixia TAA-Compliant Copper Tap Port Aggregator, TPAT2-CU3-T, 10/100/1000Mbps is a secure, plug and play aggregation device for a single network link. This aggregation tap technology enables two monitoring devices to simultaneously monitor a full-duplex link –using only one port per device.
Full-duplex monitoring with a network tap typically requires two NICs – one NIC for each side of the tapped full-duplex connection. The TPAT2-CU3-T addresses the fact that many monitoring systems only offer a single channel NIC, limiting full-duplex visibility. The Ixia Copper Tap Port Aggregator regenerates the aggregated data stream, and sends all aggregated data out two passive monitoring ports.
• Copper 10/100/1000Mbps
• Air gapped monitor ports
• Power over Ethernet (PoE) pass through support • Auto Speed Negotiation
• Secure monitoring—no IP address
• Silent operation
• Operates in harsh environments
• DIN Rail Mountable
• Fan less
• TAA Compliant
• IEEE-1613 Compliant
The Copper Tough Tap, TPAT2-CU3-T 10/100/1000Mbps is a secure Tap device which can operate as a simple tap, 2:2 packet replication (breakout on aggregation mode) or 2:1 packet replication (aggregation mode).
The TPAT2-CU3-T supports Power Over Ethernet (POE) on both Network Ports A and B.
For extra uptime protection, the TPAT2-CU3-T is supplied with redundant power connections. Should the primary power source fail, the Tap automatically switches to the backup power source. Should both input power sources fail or be removed, the TPAT2-CU3-T will still pass traffic between its network ports
