The EtherScope nXG 300

Portable Network Expert is a multi technology, all in one handheld network analyzer tool.

Now with LANBERT™ Media Qualification App

Importantly LANBERT generates and measures the transmission of line rate Ethernet frames over your network cabling infrastructure, helping top qualify its ability to support 1G/10G on fiber and 100M/1G/2.5G/5G/10G on copper links.

The EtherScope nXG All-in-One Platform

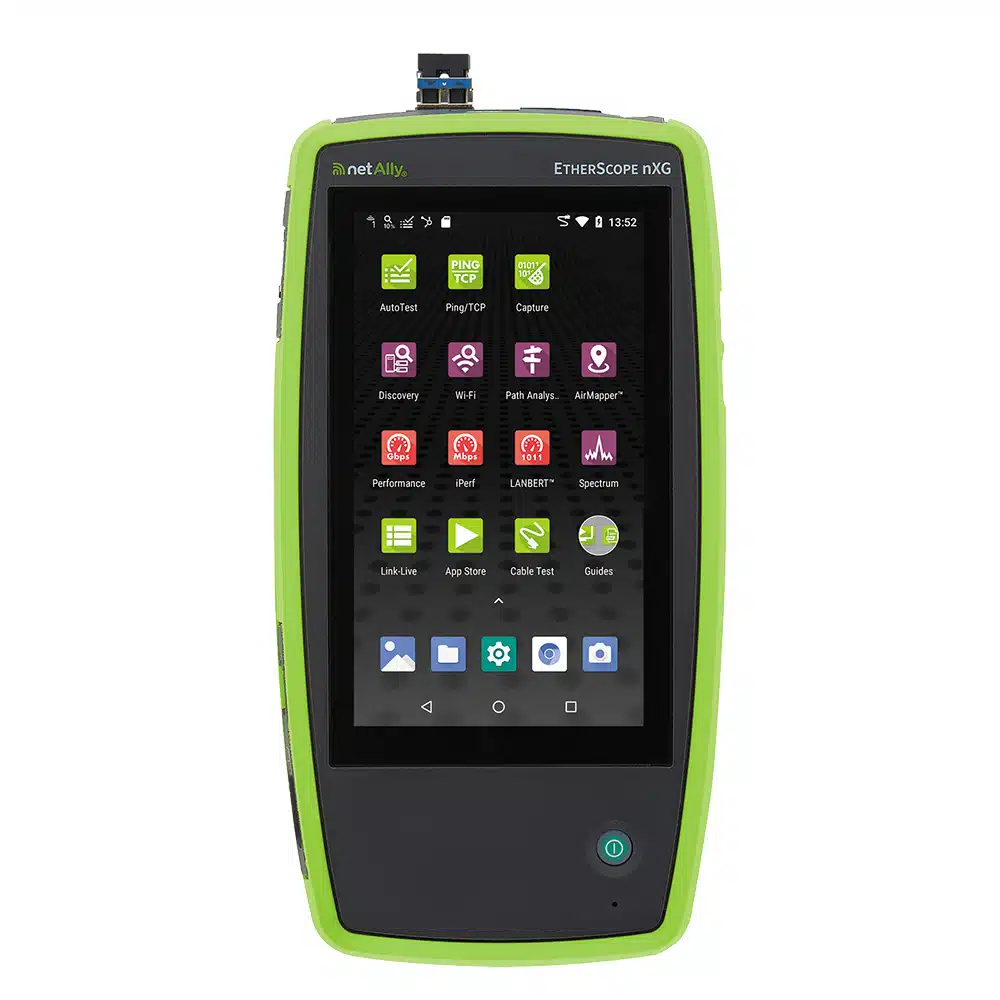

The Etherscope nXG is also an Android-based handheld network tester that verifies, discovers and troubleshoots Wi-Fi and Ethernet network infrastructures.

Native 4x4 Wi-Fi that supports:

•  NEW! Native Wi-Fi6, 6GHZ band, and spectrum support802.11a/b/g/n/ac/ax Wi-Fi network connectivity.
• fatser and easier Wi-Fi and bluetooth BLE site surveys with Airmapper
• Analysis of SSIDs, BSSIDs, channel, client devices, and interference sources.

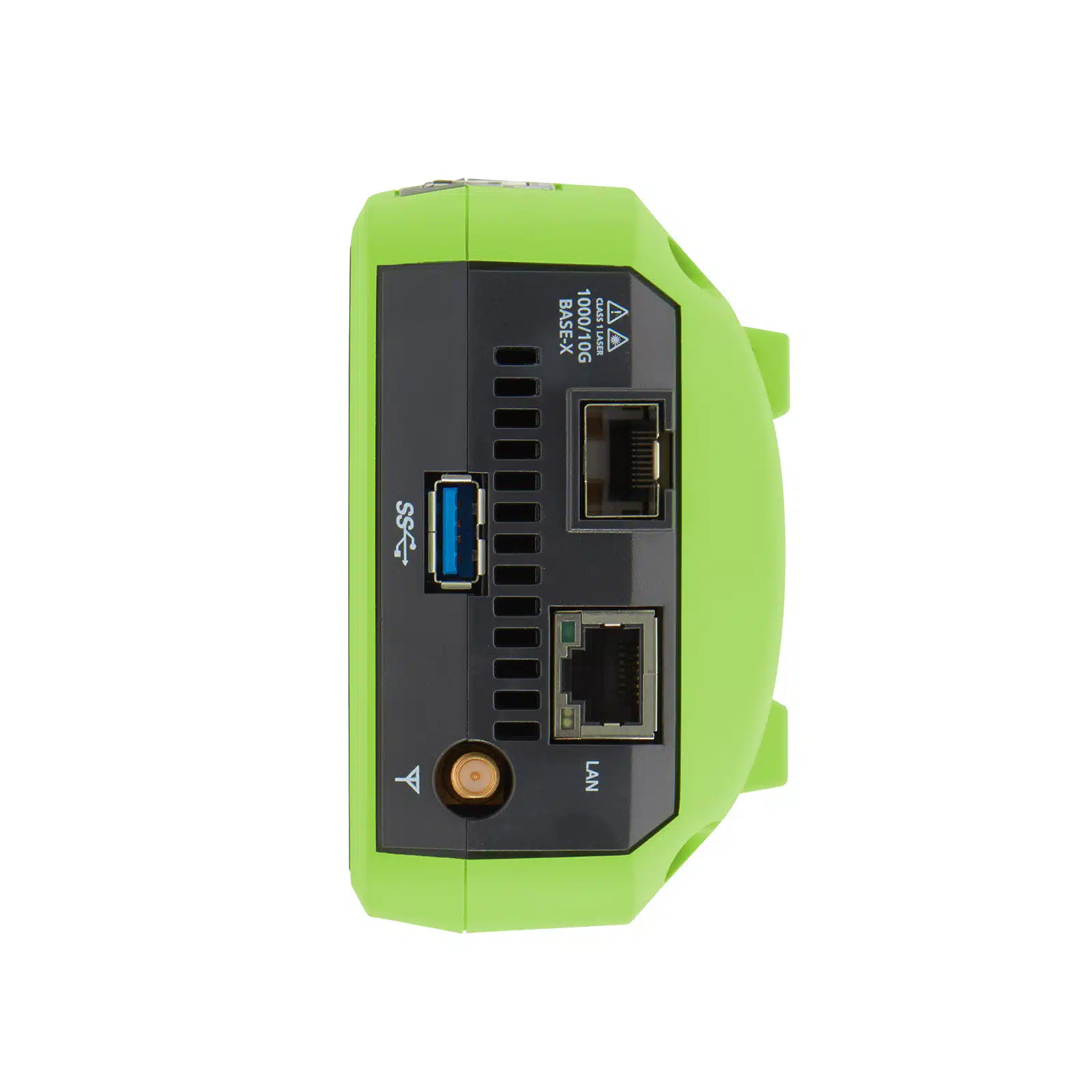

Ethernet port supports:

• 10/100/1000Mbps to 2.5/5/10G.
• Verifies loaded power from 90W PoE switch.
• Built-in Bluetooth v5/BLE and USB interfaces to discover and configure nearby device.

Auto-Discovery Tool:

When using the EtherScope nXG 300 you can instantly discover network devices across multiple VLANs and Wi-Fi SSIDs through four Wi-Fi and Ethernet interfaces upon power up.

Above all the amazing tool also has a filter and sorting function with automatic problem detection that can easily identify issues such as.

• Duplicate IP's.
• Congested switch ports.
• Oversubscribed Wi-Fi channels/SSID's.
• Security issues, like, unknown switches, access points with open authentication and unencrypted APs.
• Path Analysis shows the switch/router path to any connected device.

10G Line Rate Performance Test:

The EtherScope nXG 300 can also generate and measure up to four streams of IP-based traffic through the Ethernet test port as a result you can.

• Load the network with up to full 10G line-rate traffic.
• Test for packet loss, delay, and jitter.

Also supports popular iPerf network throughout testing forWi-Fi and Wired networks.

likewise you can verify Complex Networks with its out-of-the-box Auto test profiles for Wi-Fi and wired networks that it can be customised for your network.

Why not execute multiple AutoTest profiles that shorten test time to verify multiple VLANs and Wi-Fi SSID's.

additionally define and assign groups of targets to AutoTest profiles to verify performance using ping, TCP Connect, Web, or FTP. Best of all it can Packet capture from Wi-Fi and Ethernet to PCAP file.

The EtherScope nXG 300 Centralised Management:

Further more a complimentary Link-Live Cloud Service stores test result and site data so upload for automated reporting and documentation.

Available API enables seamless data integration between Link-Live and Trouble-ticket or network management systems.

Finally for more information on any of the Netally or Iris Networks products please feel free to contact us directly.

For even more information visit Netally at www.netally.com

Likewise you can learn more about the EtherScope nXG or any of the NetAlly tools by visiting us at www.irisnetworks.co.uk
