Allegro Network Multimeter 510

Designed for Branch Offices and Local Debugging

The Allegro Network Multimeter 510 fits perfectly into all local environments and is recommended for approximately 200 active endpoints up to 2.5 Gigabit copper connectivity. It allows you to monitor the last 40,000 viewed IP addresses and up to 2.5 millionconnections for retroactive debugging and investigation.

Real-Time Visibility and In-Depth Statistics for all Connections

The Allegro Network Multimeter 510 delivers network statistics and selective packet captures from Layer 2 to 7 for real-time as well as past time intervals for several days. The easy-to-use web interface provides a drill down from global overviews to detailed statistics including IPs, MACs, L7 protocols, TCP retransmissions.

Immediate Results

The Allegro Network Multimeter 510 offers immediate statistics at the installation point. Just place the device in line, on a tap, or use it on a mirror or span port to view activity at this point. The Allegro 510 supports 2 x 1 Gigabit ports and 2 x 2.5 Gigabit ports as well as tunnel termination, including ERSPAN.

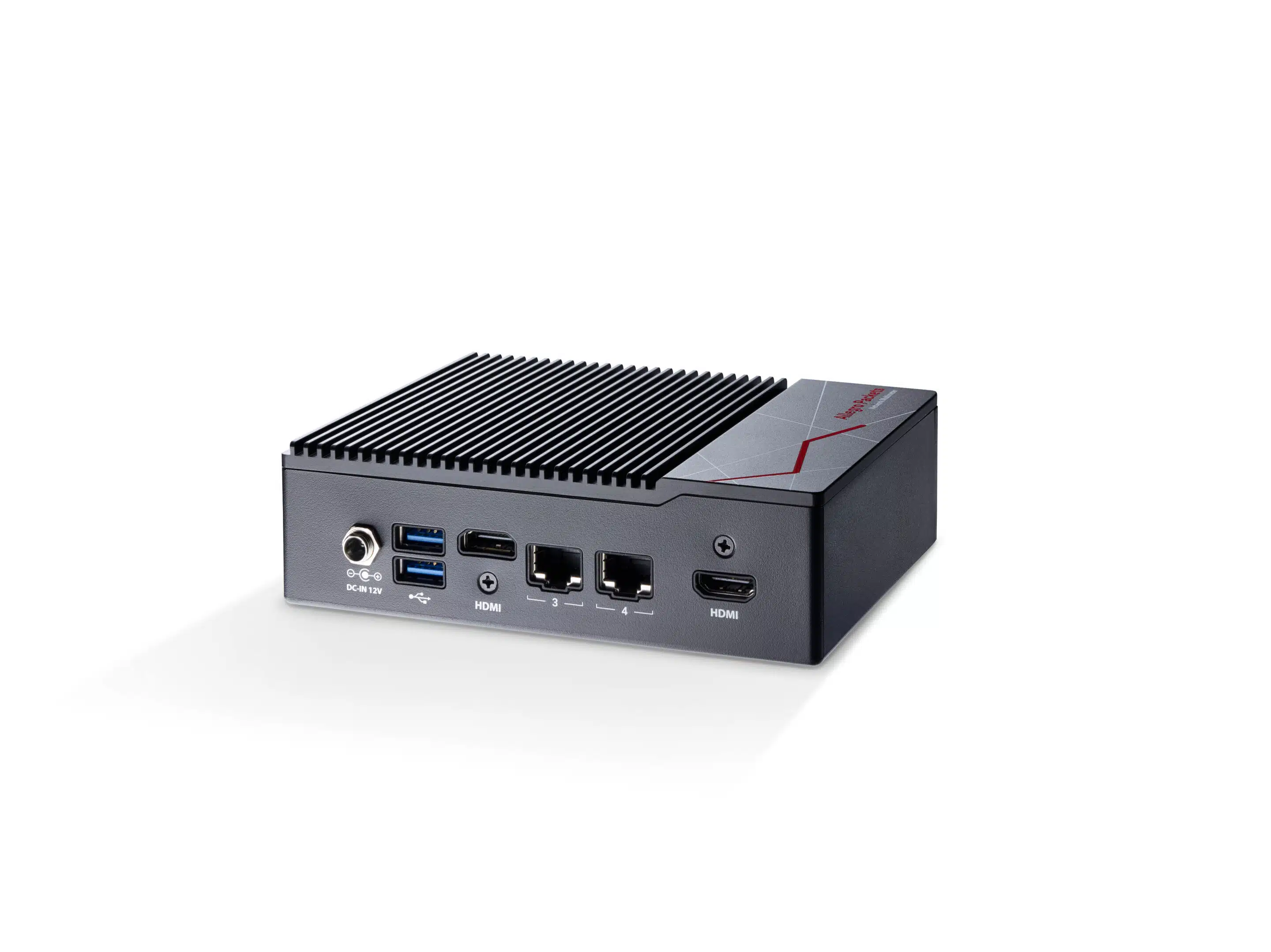

Powerful and Portable

The Allegro Network Multimeter 510 is a portable solution weighing less than one kilogram. It uses passive cooling without any moving parts. An SSD is used as an additional packet ring buffer, allowing the extraction of packets from past traffic with a simple click to download to your browser.

Versatile Analysis Modules

The Allegro Network Multimeter 510 integrates a number of analysis modules from L2 to L7. They help to identify network issues such as microbursts on L2, TCP retransmissions for a specific host on L4, application-layer statistics including TLS, HTTP, SMB, and SIP, or the top traffic users for a specific protocol, e.g. a Windows update 3 hours ago. The integrated dashboard provides a quick overview.

Quality Made in Germany

The Allegro Network Multimeter 510 is developed in Leipzig, Germany. Purchasing the Allegro 510 includes direct support from our highly qualified team based in Germany.

Size (W/H/ D) in mm - 148 x 44 x 118

Weight - 1KG

Power supply - 40 W, external

Airflow - Passive cooling, no fans

Internal database memory - 16 GB

Internal SSD for ring buffer - 960 GB / 3,840 GB / 15,360 GB

Management ports - 1x 1000Base-T

                               - 1 x WiFi 802.11n via USB adapter

Capture ports - 2 x 10 /100 / 1000 / 2.5GBase-T

                         2 x 10/ 100 / 1000Base-T

                         1 x WiFi 6e USB adapter1

Max. capture rate (capture only)? - 4 Gbit/s

Average throughput (full decode) - 2.5 Gbit/s

Average packets per second - 600,000 pps

New connections per second - 3,000

Max. parallel connections - 250,000 concurrent open connections

Connection history - Up to 2.5 Mio. connections

IPv4/v6 history4 - Up to 40,000 IPs

Jumbo frames - 9,000 bytes

Maintenance S & support Default 1 year, more as option

Operating temnperature - 0C to 30°C (32°F to 86°F)

Non-operating temperature -30°C to 60°C (-22°F to 140°F)

Operating relative humidity. - 8 % to 80% (non-condensing)

Non-operating relative humidity - 8% to 90 % (non-condensing)

Certifications CE, FCC, RoHS, BIS
